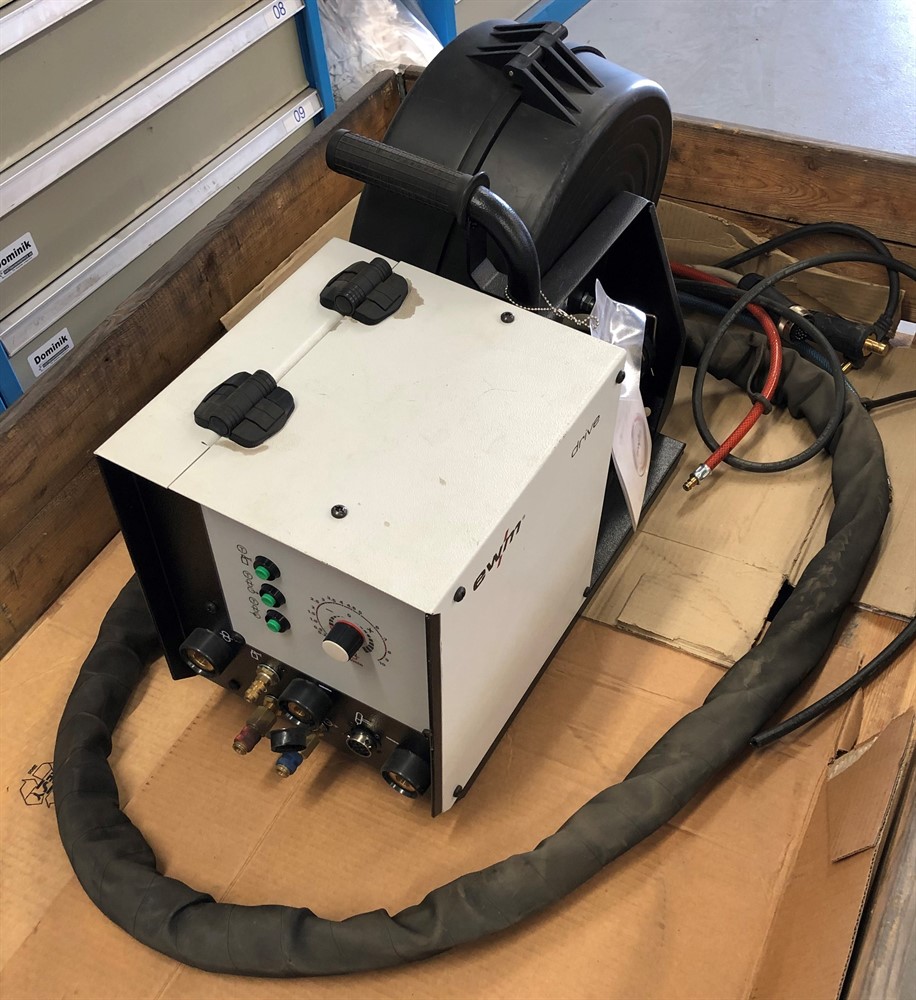

TETRIX DRIVE 4L
Supply voltage 42 VAC / 60 VDC
max. Welding current at 60% Duty Cycle 520 A
Wire feed speed 0.2 m/min to 10 m/min
Standard WF roller fitting 1.0 + 1.2 mm (for steel wire)

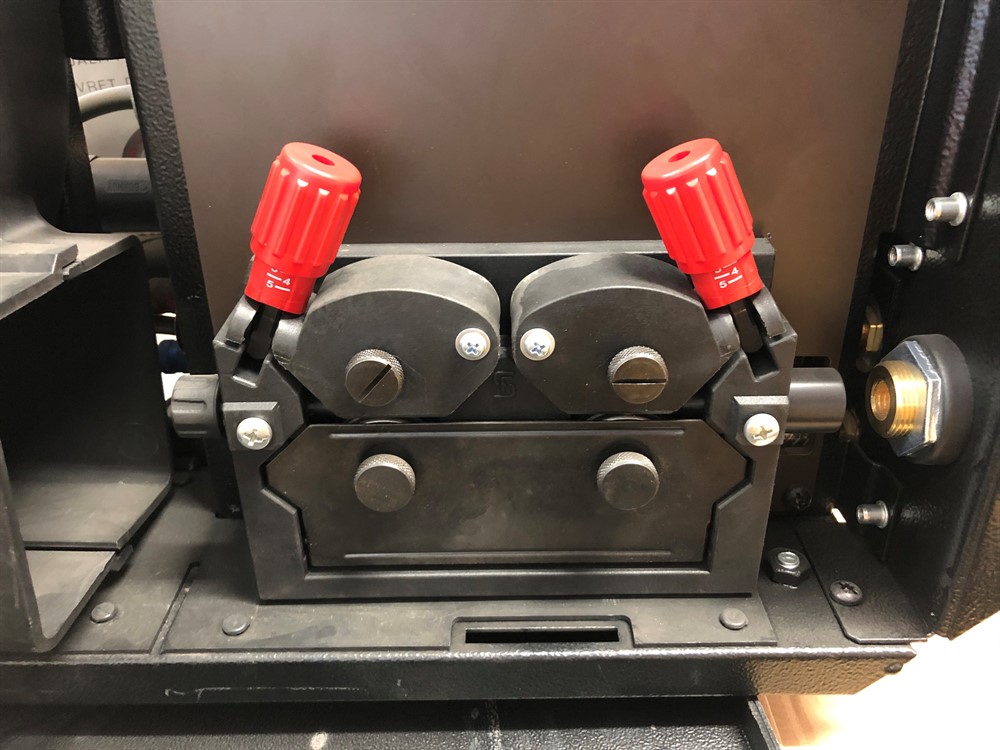

Drive 4-roller (37 mm)
Torch connection decentral
Protection classification IP 23
Ambient temperature -10°C to +40 °C
Dimensions (L x W x H) [mm] 800 x 350 x 560
Weight without accessories 18 kg
Constructed to standards IEC 60974/EN 60974/VDE 0544
EN 50199/VDE 0544 Part 206/
